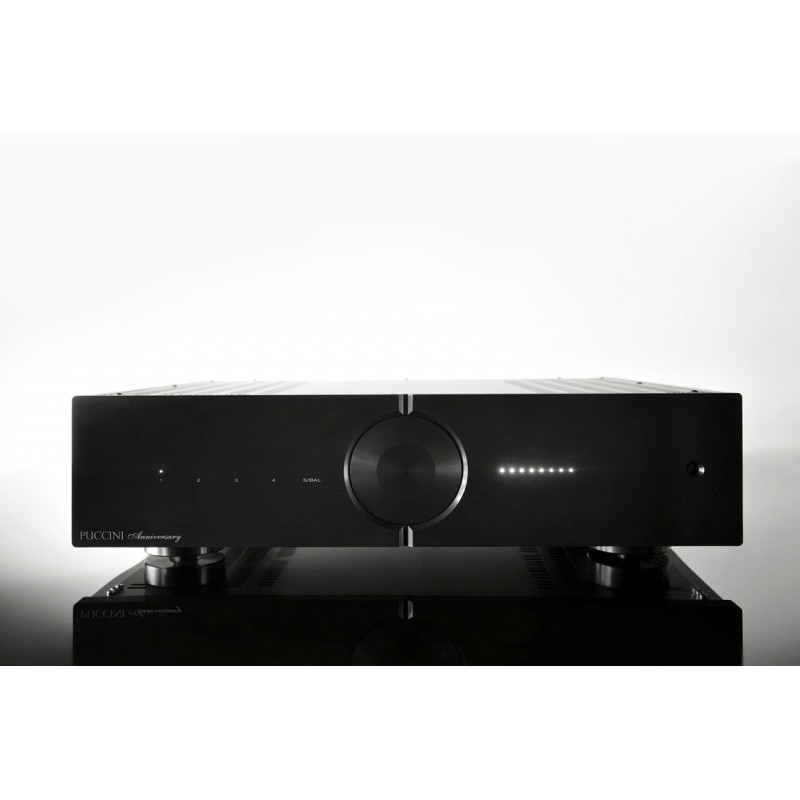

Audio Analogue Puccini Anniversary

19152 lei/bucata

Sau 2394 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde

Filozofia dupa care sunt construite produsele Audio Analogue: design italian, performanța de cea mai inalta calitate, finisaje extraordinare, selectarea cu atentie a materialelor si a componentelor electronice, împreună cu o remarcabilă ușurință in utilizare.

Produsele Audio Analogue sunt realizate în Italia, folosind în principal industriile mici și meșteșugari foarte calificati, pentru a profita la maxim de excelența italiană. Ele sunt realizate complet manual, testate cu echipamente de înaltă calitate, dar și cu teste de ascultare.

Audio Analogue Puccini Anniversary

20 years of Audio Analogue, 20 years of Puccini, the two things go hand in hand … the Puccini, the first amplifier and the first Audio Analogue product and absolute milestone of high fidelity audio. The dream was to create the best Puccini ever, a product that would mark a turning point in the history of Audio Analogue and show the way for what will be the products of the future, created with the intention of giving top sound performances, but also technically very advanced. This is certainly a tall order and to make it possible we have seen the consolidation of an idea born in the Airtech laboratories: development of an integrated amplifier without global feedback, being this way less sensible to the kind of load driven, without the tendence to oscillate, without high frequency resonance peaks, with no saturation in the input stages and with completely balanced circuitry.



Product Description

Audio Analogue Puccini Anniversary

Channels                                        2
RCA Inputs                                      4
XLR Inputs                                      1
Input impedance                               47 kΩ
Power on 8Ω load                                80W @ 1% THD + N
Power on 4Ω load                                160W @ 1% THD + N
Power on 2Ω load                                300W @ 1% THD + N
Sensitivity(8Ω output nominal power)              490mVRMS
Frequency Response(Att. 0dB, -3dB band)             80KHz
Output resistance(2Ω nominal power and 1kHz)        0.17Ω
Input Noise(Band limits 0Hz-80kHz/A-weighted)=      30µV/=10µV
SNR=                                                  110 dB
Dimensions(HxWxD)                                  120x445x390 mm
Weight                                                15.5 Kg
Heavy metal chassis, aluminum front panel with 14mm thickness, remote control.
Volume control with an encoder that communicates with the four digital high precision Analog Devices potentiometers(two per channel).
Volume with four possible curves selectable according to the sensitivity of the speakers. Indications of volume level and selected input, thanks white LEDs
with brightness adjustable on two levels, or switched off. Inputs with high-quality gold-plated RCA connectors with Teflon insulation, soldered directly
to the input's board and activated via signal relays. All stages of the amplifier on separate boards.
Printed circuit boards have golden copper footprints with double thikness compared to standard PCBs in order to increase the electrical conductivity.
Fully dual-mono circuitry. Transformer power 700VA, six pairs of ON-Semiconductor power transistors (three per channel). All internal wiring with pure solid
7N OCC copper conductors, military standard resistors, audiograde polypropylene capacitors, copper binding posts gold plated.

Informații suplimentare

Culori Audio Analogue

Negru, Silver

Prod

Amplificator Stereo Integrat

Producator

Audio Analogue
