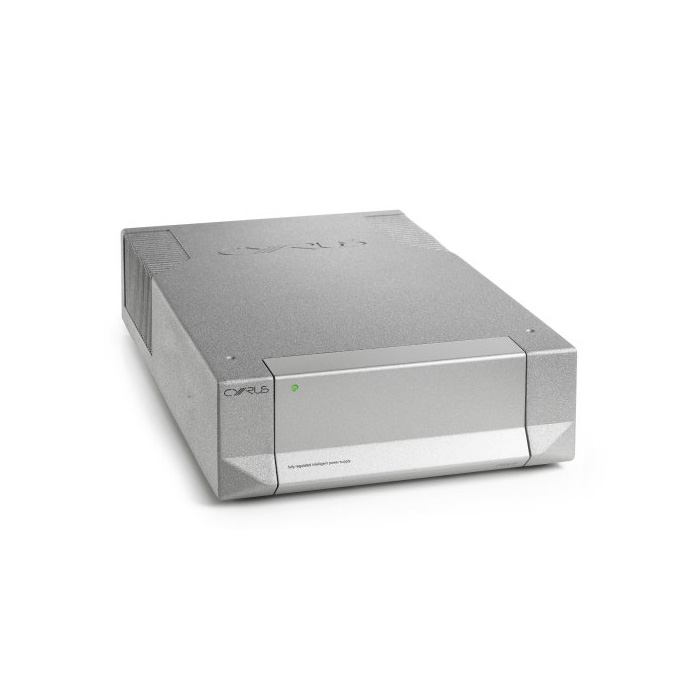

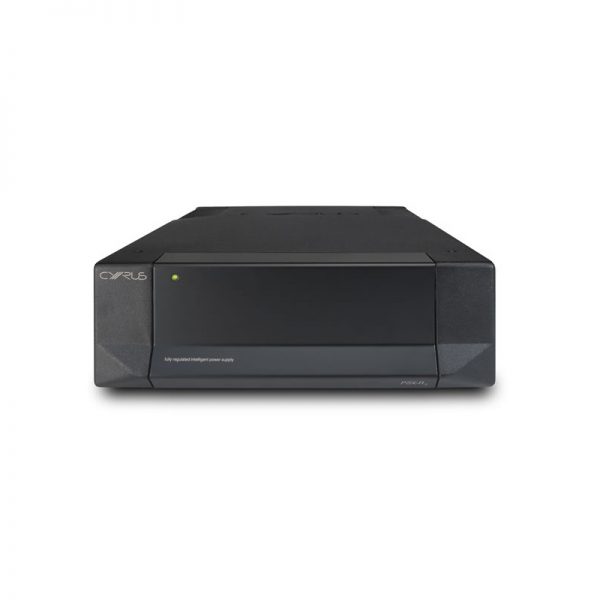

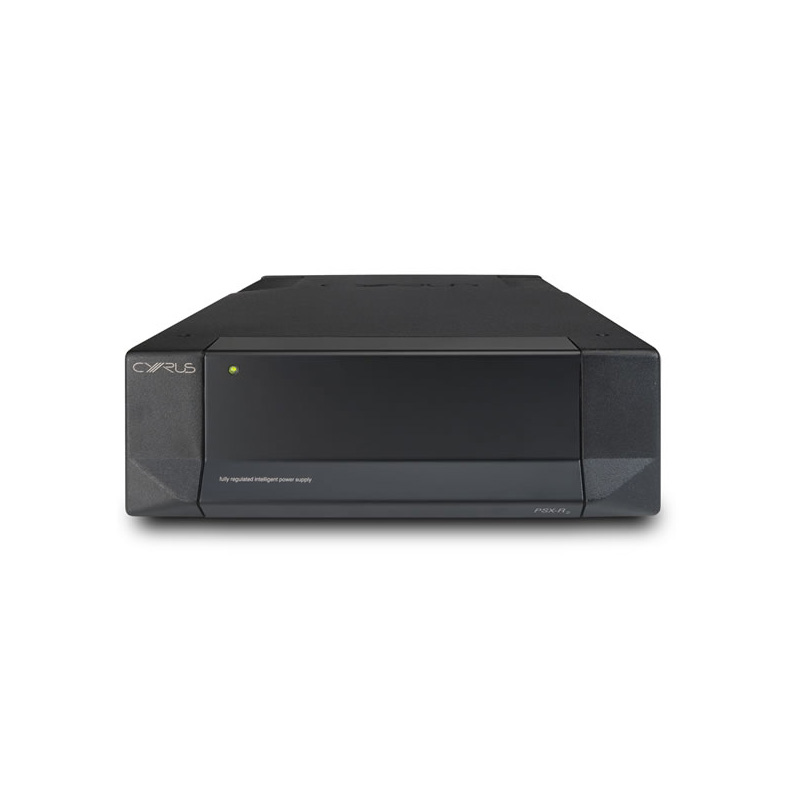

Cyrus PSX-R₂

• ±35.5 VDC For stereo power and integrated amplifiers
• ±18-30 VDC For mono-bloc power and other amplifiers
• ±21 VDC For low power applications

DIMENSIONS (MM)

• Height – 73
• Width – 215
• Depth – 360
• Weight 7kg

• The PSX-R₂ is based on a design that has been in the Cyrus family for over 30 years. The latest improvements bring power supply filtering from the Anniversary system, culminating in the new v2 edition.

Instant Upgradeability

• The PSX-R₂ provides an instant sonic improvement to any compatible product. The benefits of a separate, isolated and highly regulated power supply allow internal electronics to upgrade their sonic performance.

Intelligent Connectivity

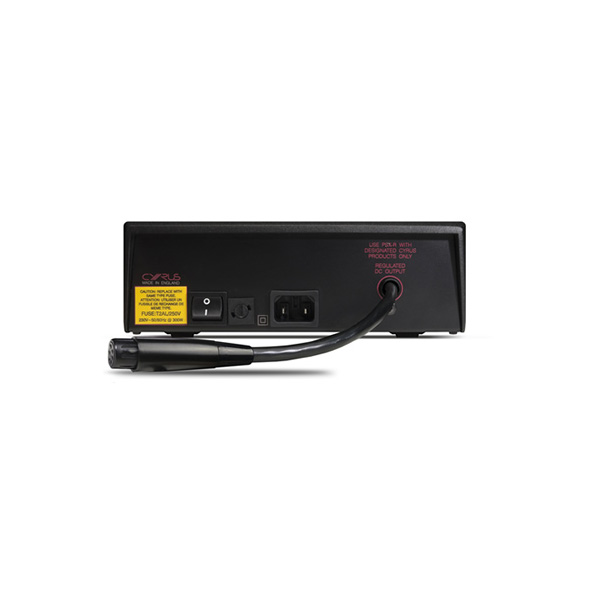

• No modifications are required when connecting a PSX-R₂ to partnering equipment. Both units intelligently adjust output and input parameters to suit. Simply power off both units, connect and power on; internal circuitry detects the connection and re-adjusts perfectly.

300VA Toroidal

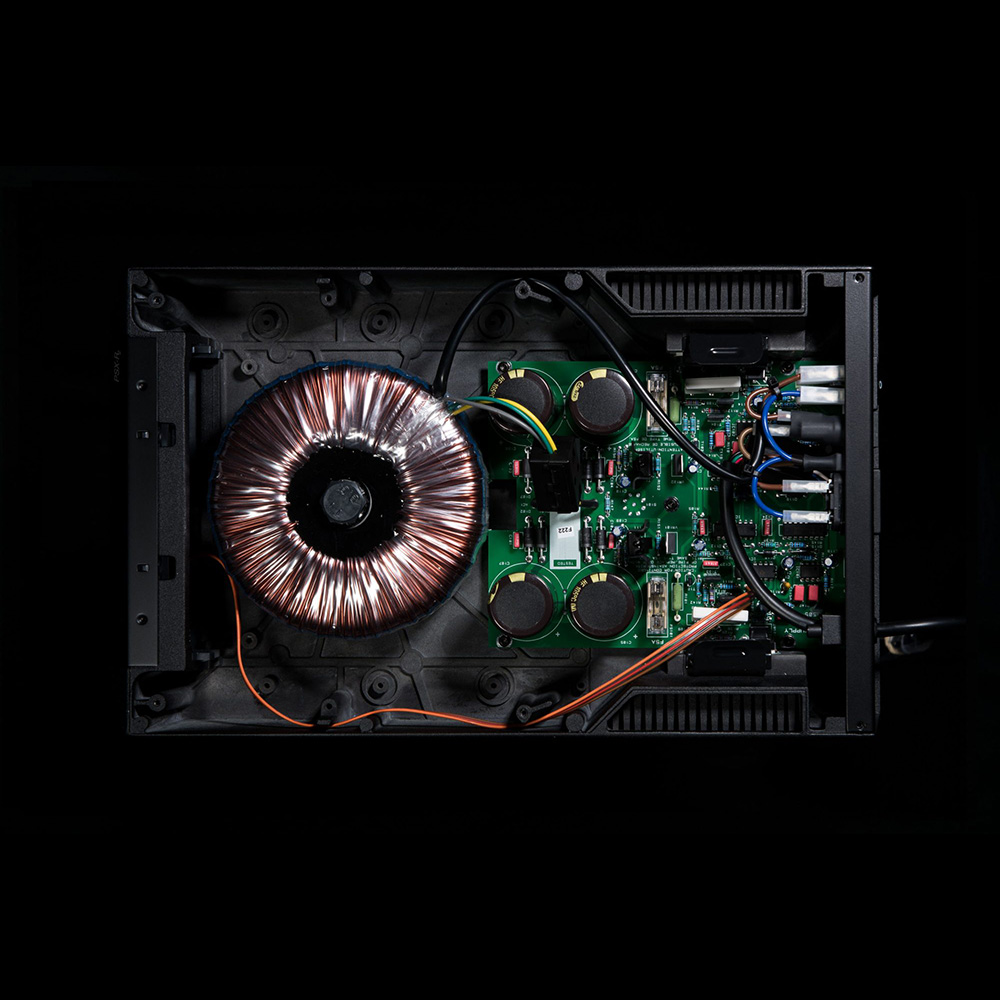

• A 300va toroidal transformer was chosen for its ability to deliver an enormous current, forming the front end of the PSX-R₂. The 30,000 microfarad slit foil reservoir capacitors ensure that very low ESR and wide bandwidth are presented to the linear mode regulator stage that follows.
