Product Description

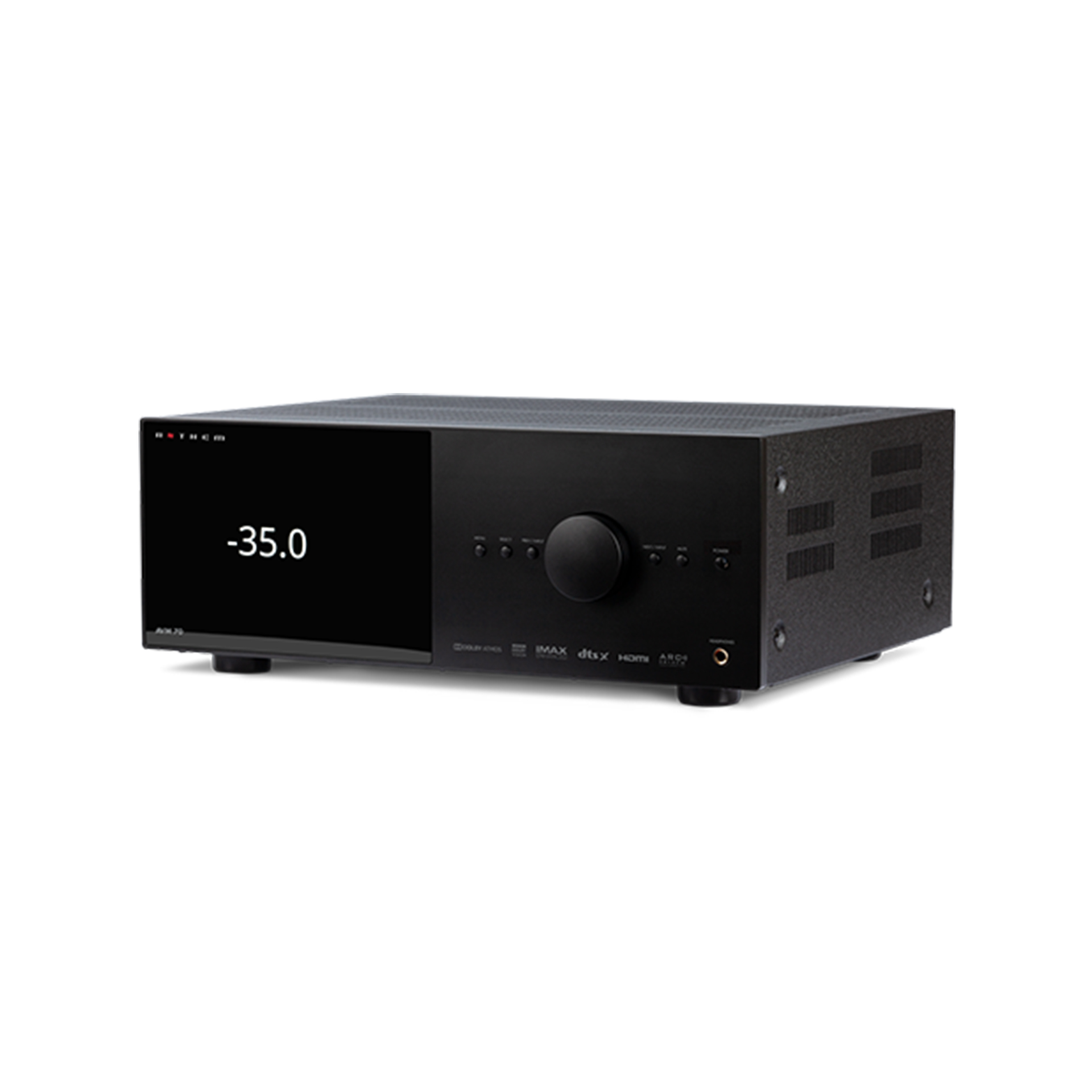

Anthem AVM 70 8K
| PREAMPLIFIER (MEASURED AT XLR OUTPUT) Maximum Output (<0.1% THD) 10.7 VRMS, Subwoofer 11 VRMS Frequency Response 20 Hz — 35 kHz (+/-0.2dB) Frequency Response, Analog-Direct 20 Hz — 80 kHz (+0, -2 dB) THD+N (4 Vrms output) -100 dB S/N Ratio (4 Vrms output, IEC-A filter) 110 dB XLR Configuration Pin 1: Ground, Pin 2: Positive, Pin 3: Negative POWER CONSUMPTION Typical Load 60 W Standby 0.3 W Standby IP Control Enabled 1.8 W Standby HDMI Bypass Enabled 4.9 W DIMENSIONS Height (without feet) 6″ (15.24 cm) Height with Rackmount Kit 4U Width 17″ (43.18 cm) Depth (including wifi ant not power cord) 14-1/2″ (36.4 cm) Weight 22.1 lbs, 10.1 Kg POWER REQUIREMENT 120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. 220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. |
