Product Description

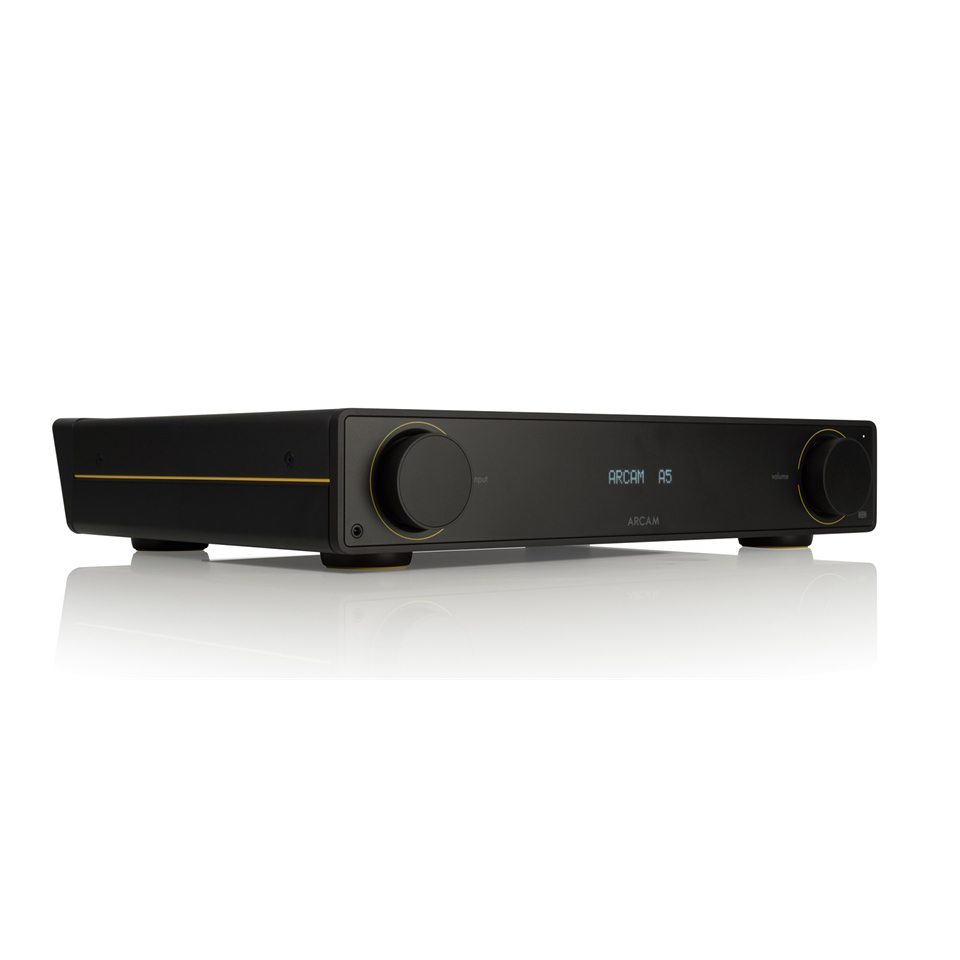

Arcam A5
| Continuous power output (0.5% THD), per channel 2 channels driven, 20Hz – 20kHz, 8Ω 50W 2 channels driven, 1kHz, 4Ω 75W Harmonic distortion, 80% power, 8Ω at 1kHz 0.003% Analogue Inputs Number of inputs 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB Frequency response 20Hz—20kHz ± 0.2dB Phono (MM) Input Input impedance 47kΩ + 100pF Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB Digital Inputs Supported Sample Rates (kHz) Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1 Bit depths (bit) 24, 16 Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB Headphone Output Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V Load range 16Ω – 2kΩ General Mains voltage 100V or 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 350W Power consumption (standby) <0.5W Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm Weight (net) 8kg Weight (packed) 11kg |
