Product Description

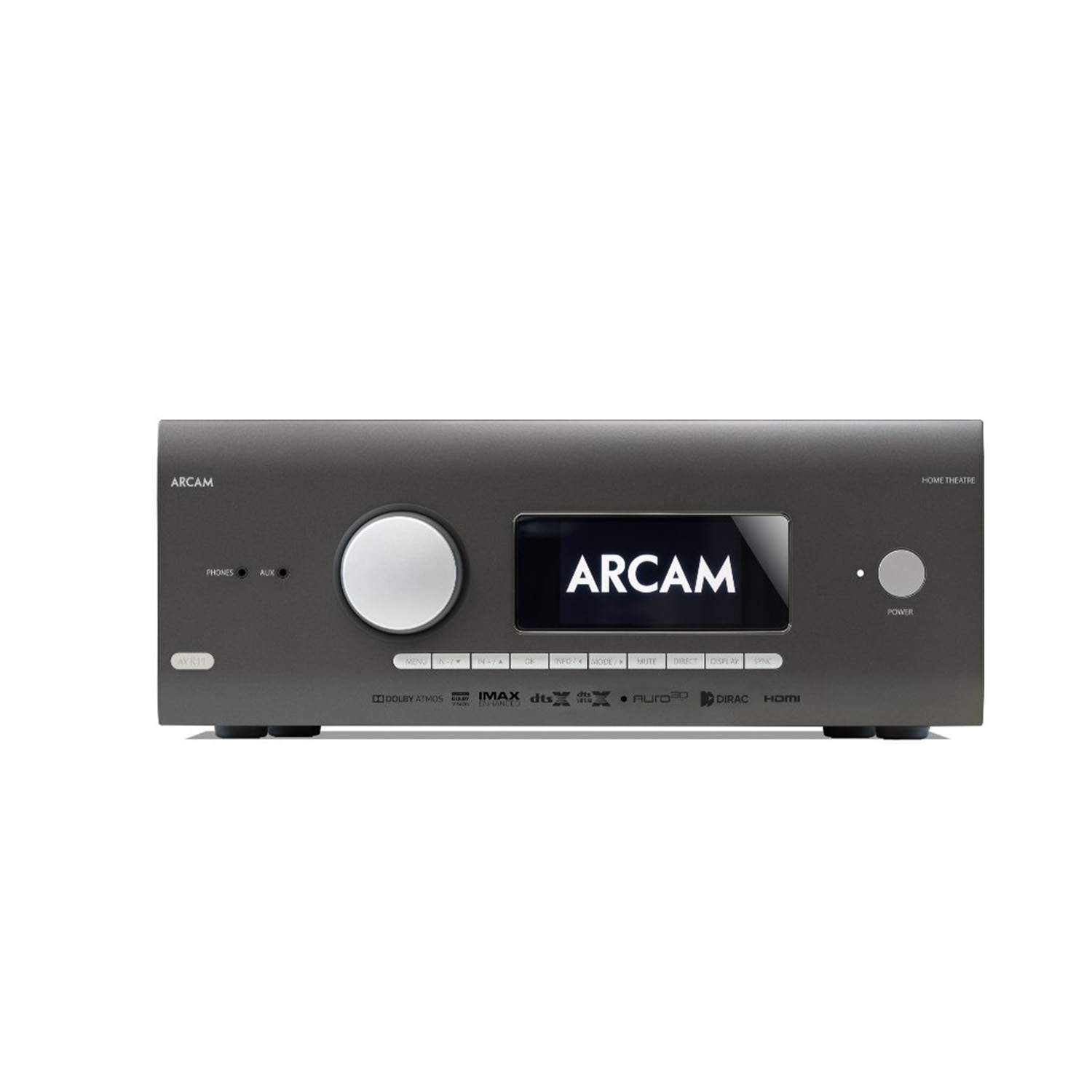

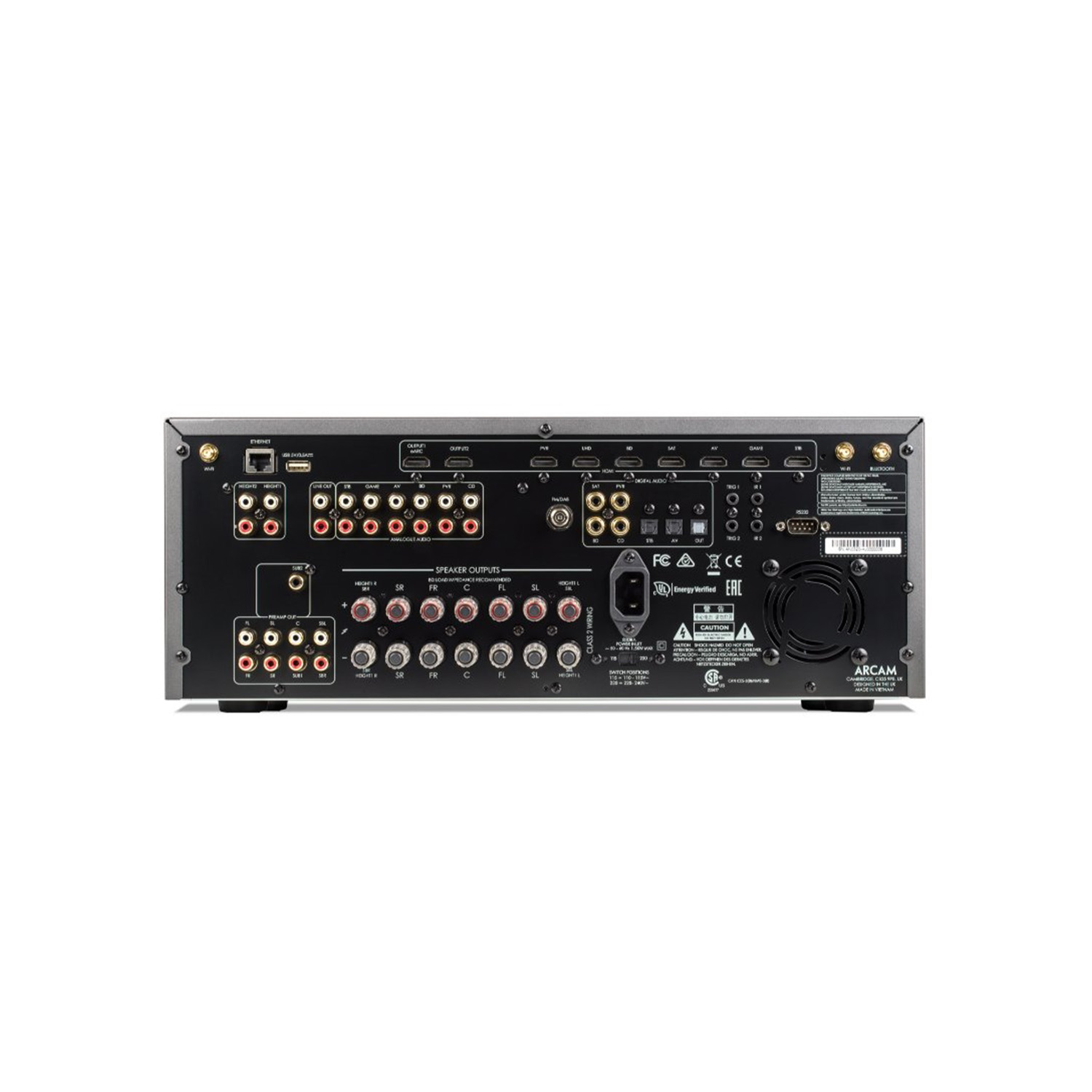

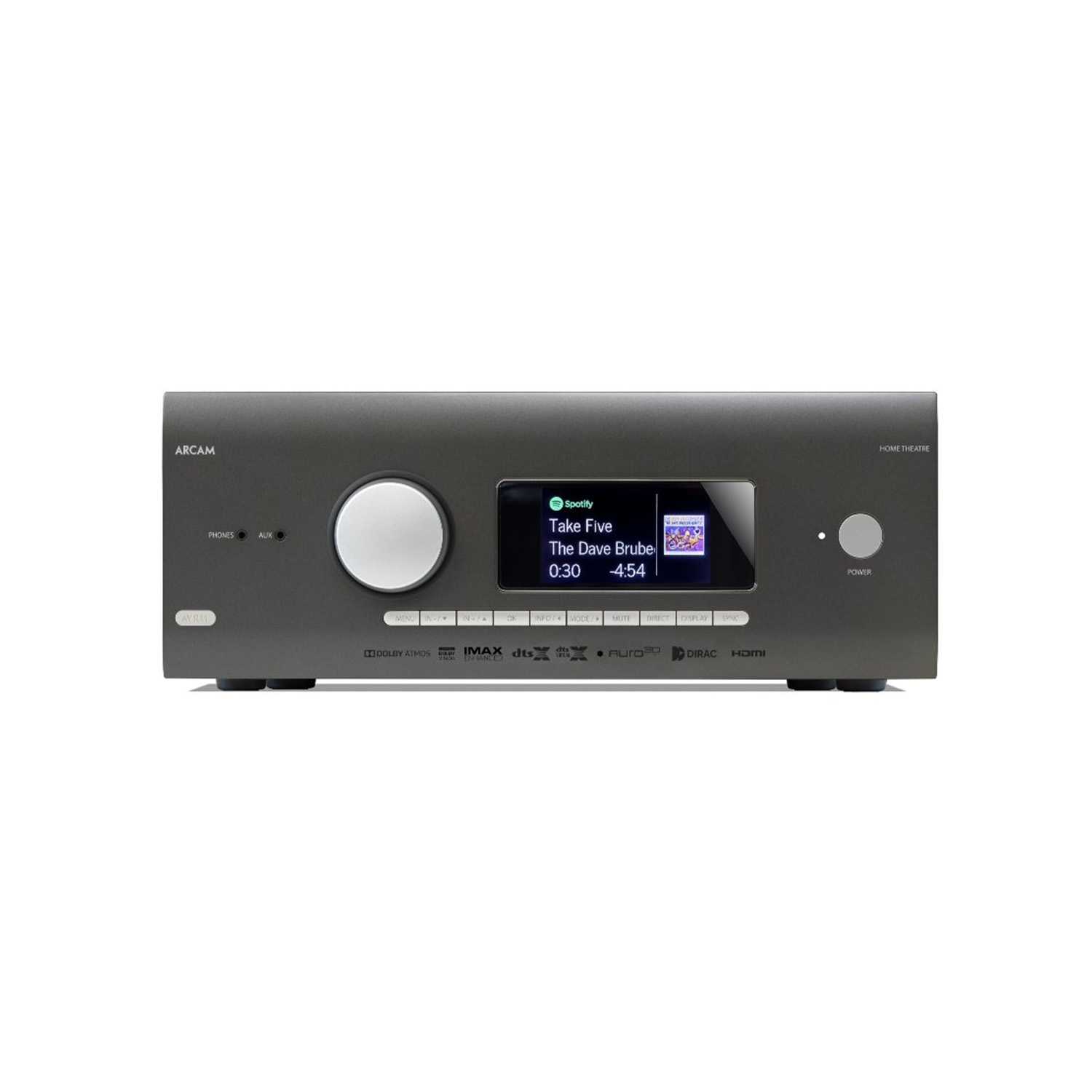

Arcam AVR11
| Continuous power output, per channel, 8Ω/4Ω 2 channels driven, 20Hz – 20kHz, <0.02% THD 80W/100W 2 channels driven, 1kHz, 0.2% THD 85W/120W 7 channels driven, 1kHz, 0.2% THD 60W/85W Residual noise & hum (A-wtd) <0.15mV Stereo Line Inputs Maximum input 4.5V rms Nominal sensitivity 1V, 2V, 4V (user adjustable) Input impedance 47kΩ Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB Frequency response 20Hz—20kHz ± 0.2dB Preamplifier Outputs Nominal output level 1V RMS (max. 5V RMS) Output impedance 560Ω THD+N (20Hz—20kHz) –100dB Headphone Output Maximum output level into 32Ω 5Vrms Output impedance <100Ω General Mains voltage 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour) Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour) Power consumption (standby) <0.5W Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm Weight (net) 16.5kg Weight (packed) 19.8kg |
