Asus Xonar Essence One Muses Edition

3222 lei/bucata

Sau 402.75 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
SKU: 11994. Categories: , . Tag: .

Powered by six top-notch MUSES 01 Op-Amp for crystal clear and spacious sound
MUSES 01 is the first ever oxygen-free copper interconnect and custom layout Op-Amp for truthful sound reproduction
8x symmetrical upsampling technology for ultra-low sound distortion
Dedicated 600ohm headphone amplifier for clearest detail
Ultra-high 120dB SNR for purest sound

Product Description

  • Audio Interface
    USB
  • Audio Performance
  • Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
    120 dB
    Output THD+N at 1kHz (Front-out) :
    >0.000316 %(-110 dB)
    Frequency Response (-3dB, 24bit/192KHz input) :
    10 Hz to 48 KHz
    Output/Input Full-Scale Voltage :
    Balanced Output : 4 Vrms ( Vp-p)
    Unbalanced Output : 2 Vrms ( Vp-p)
    Headphone : 7 Vrms ( Vp-p)
  • ChipsetAudio Processor :C-Media CM6631 High-Definition Sound Processor
  • Sample Rate and Resolution
  • Analog Playback Sample Rate and Resolution :
    44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
    S/PDIF Digital Input :
    44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
    ASIO Driver Support :
    44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit with very low latency
    Upsampling capability :
    Up to 352.8 kHz (44.1K 88.2K 176.4KkHz input) or 384 kHz (48K/96K/192KkHz input), 32bit

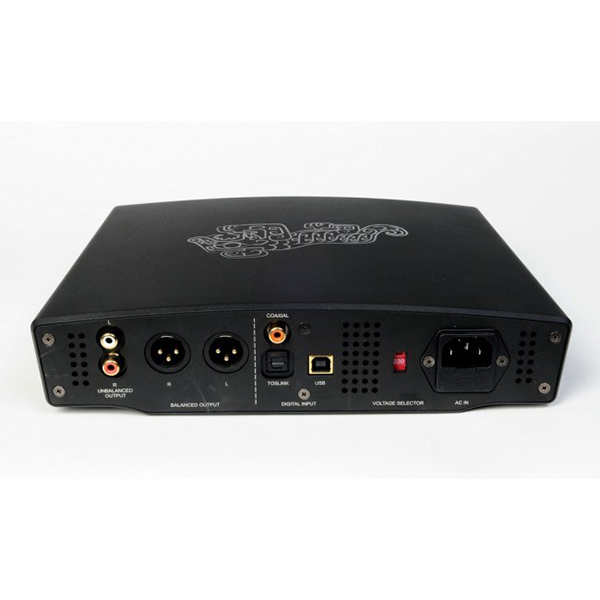

  • Connectivity
  • Analog Output
    1 x 6.3 mm jack (1/4″) Headphone out
    2 x RCA (Un-Balanced)
    2 x XLR (Balanced)
    Digital
    2 x S/PDIF in (1 x Optical (Toslink)/1 x Coaxial)
  • Accessories
  • Driver CD x 1
    6.3mm to 3.5mm stereo adapter x 1
    Audio Precision (AP) test report x 1
    USB cable x 1
    Power cord x 1
  • Dimensions
    261.33 x 230 x 60.65 mm ( L x W x H )
  • Note
    Components:
    ● S/PDFI Receiver: AKM 4113
    ● DSP: ADI ADSP-21261
    ● D-A Converter for Analog Inputs: TI PCM1795
    ● Power Input Jack: IEC AC Inlet
    ● Volume controller: Balanced Output: Quad Units Taper B Potentiometer; Headphone Output: Quad Units Taper B Potentiometer
    ● Voltage Selector: AC 115V/223V Slide Switch
  • Operational amplifier:
    ● Balanced/ Un-balanced I/V:4 x MUSES 01
    ● Balanced/ Un-balanced LFP: 2 x MUSES 01
    ● Balanced/ Un-balanced Buffer: 3 x LM4562NA
    ● Headphone: 2 x LME49600
  • Clock:
    ● Crystal clock: 12MHz For USB; 24.576MHz For S/PDIF
    ● Oscillator: 45.1584MHz (for 44.1KHz sample rate); 49.152MHz (For 48KHz sample rate)
  • LED Indicator:
    ● One color LED: Ø3mm Lamp LED Blue color
    ● 2 color LED: Ø3mm Lamp LED Multi color(Blue and Red)
  • MAC OS X support:
    The Essence One supports Mac OS X 10.8 or later version without any driver needed.
