IMPORTATOR EXCLUSIV asus xonar essence stu

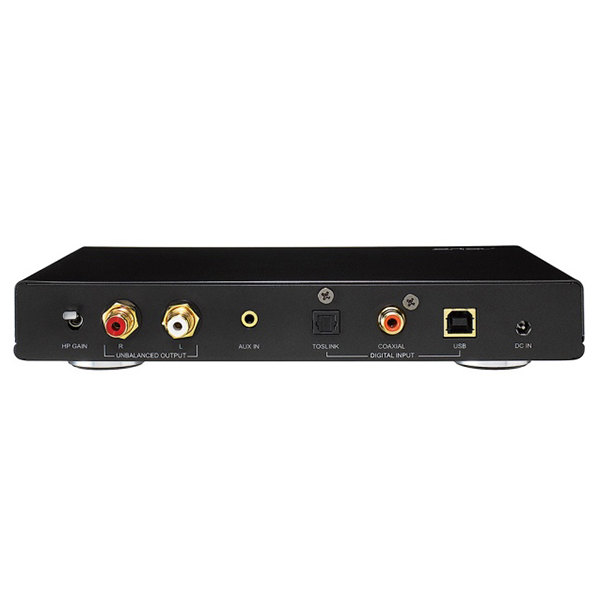

asus essence stu- back

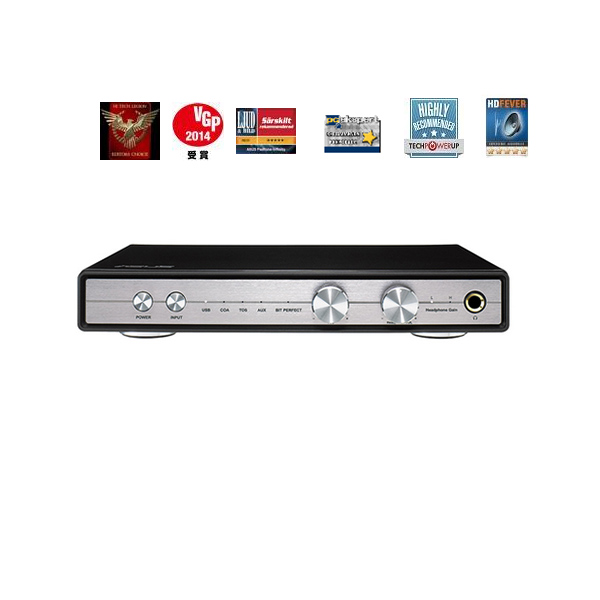

Asus Xonar Essence STU

1371 lei/bucata

Sau 171.375 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
SKU: 12005. Categories: , , . Tag: .

Excellent audio quality as inherited from acclaimed Xonar Essence ST/STX
Precision clock tuning technology and asynchronous USB transfer ensure jitter-free fidelity
Integrated 600ohm headphone amplifier optimizes sound detail with two gain settings
120dB Signal-to-noise ratio (SNR) delivers high definition audio clarity
Dedicated jumper switch allows direct audio delivery to your power amplifier, by-passing DAC volume controls
Three swappable Op-Amps enable tonal character tuning based on personal taste

Product Description

  • Audio Interface
    USB 2.0 high-speed
  • Audio Performance
  • Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
    120 dB
    Output THD+N at 1kHz (Front-out) :
    >0.00036 %(-108 dB)
    Frequency Response (-3dB, 24bit/192KHz input) :
    10 Hz to 48 KHz
    Output/Input Full-Scale Voltage :
    Unbalanced Output : 2 Vrms ( Vp-p)
    Headphone : 7 Vrms ( Vp-p)
  • Chipset
  • Audio Processor :C-Media CM6631A High-Definition Sound Processor
    Sample Rate and Resolution
    Analog Playback Sample Rate and Resolution :
    44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
    ASIO Driver Support :
    44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
  • Connectivity
  • Analog Output
    1 x 6.3 mm jack (1/4″) Headphone out
    2 x RCA (Un-Balanced)
    2 x S/PDIF in (1 x Optical (Toslink)/1 x Coaxial)
    1 x Aux in 3.5mm jack (1/8”)
  • Operating System
  • Windows® 8 , 32bit/64bit
    Windows® 7 , 32bit/64bit
    Windows® XP , 32bit/64bit
    Mac OS X *
  • Accessories
  • 6.3mm to 3.5mm stereo adapter x 1
    Driver CD x 1
    Quick Start Guide x 1
    USB cable x 1
    Power cord x 1
    Power adapter x 1
  • Note
    Swappable operational amplifier:
    ●I/V: LME49720 x 2
    ●LPF: LM4562 x 1Output impedance:
    ●Line out: 100 ohm
    ●Headphone out: 10 ohmClock:
    ●Crystal clock: 12MHz
    ●Oscillator: 45.1584MHz (44.1kHz);49.152MHz (48kHz)Power supply type:
    ●Power consumption(Max): 12W
    ●Power input jack: DC in 12V
    ●Power input range: AC 90~264V*Xonar Essence STU supports OS X 10.6 or above for playback.
