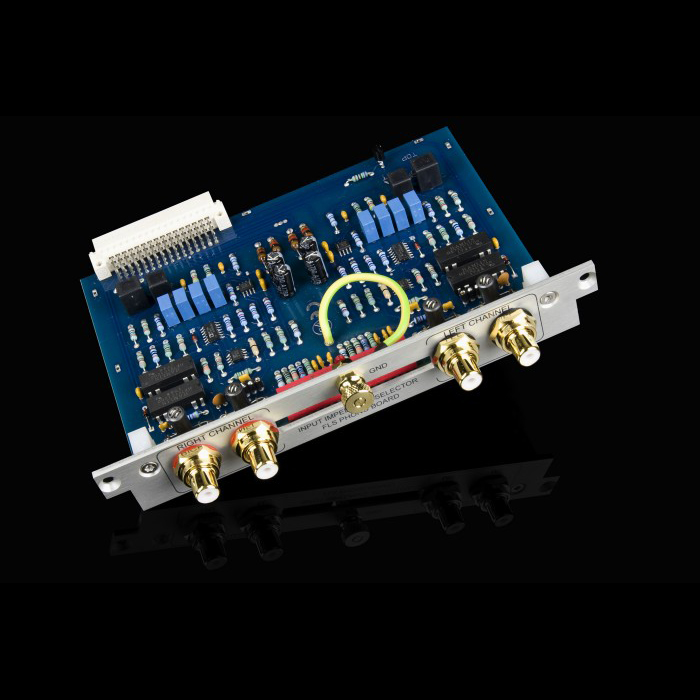

Audia Flight MC/MM phono board for FLS series

The optional phono board for the Audia Flight FLS series can be retrofitted at any time or ordered with a new order. It includes an MM (moving magnet) and an MC (moving coil) input. Both inputs can be used independently of each other, so an MM and an MC cartridge can be connected at the same time.

The circuit board itself has a double mono structure. The parallel resistance for MC and the additional capacitance for MM can be adjusted using small DIP switches on the back of the board and is also possible at any time after installation. The following parallel resistance options are available for the MC input:

20 Ω / 25 Ω / 30 Ω / 70 Ω / 100 Ω / 200 Ω / 250 Ω / 330 Ω / 600 Ω / 1000 Ω / 1500 Ω

It is also possible to insert two 0.25 watt precision resistors directly on the circuit board. So if you want to achieve a very special value, you can install it. The following capacities are available for the MM input:

50 pF / 100 pF / 150 pF / 200 pF / 250 pF / 300 pF / 350 pF / 400 pF

The phono board has the same sound level as expensive individual components, without the high costs for the housing, power supply and other connection cables. Realistically, however, you have to admit that it does not achieve the quality of the famous flight phono. The Phonoboard can be combined with the digital board or XLR board. The phono board and the RCA board cannot be operated at the same time.
