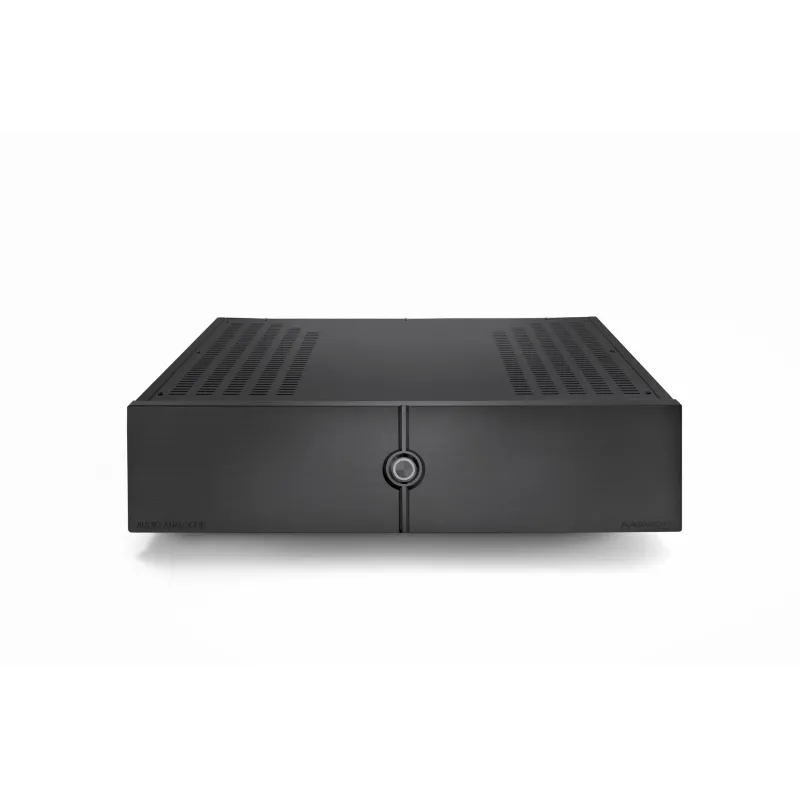

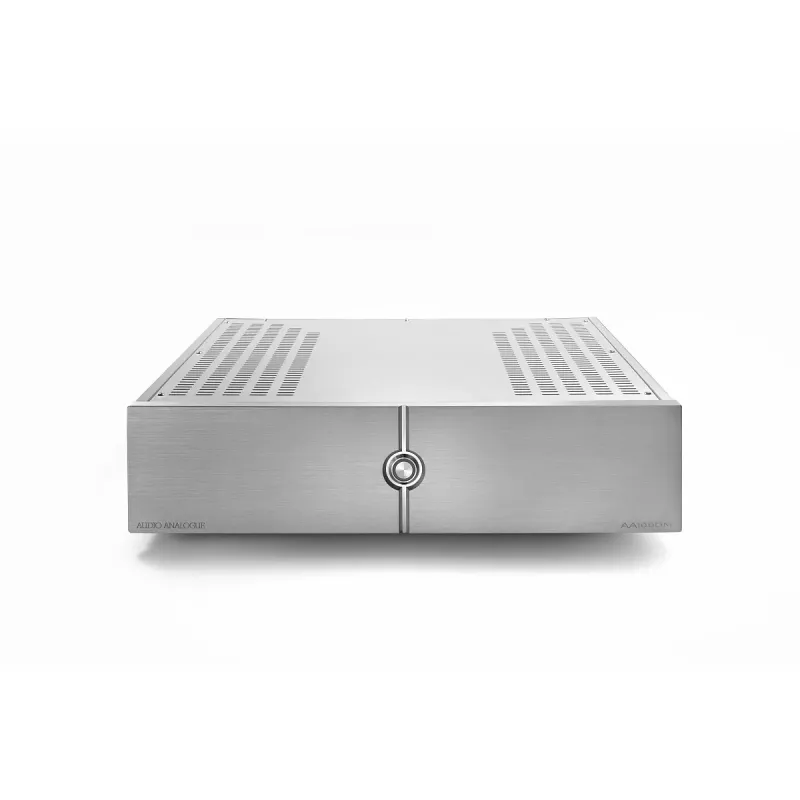

Audio Analogue AA100DM

30050 lei 26230 lei/ bucata

Sau 3278.75 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
Clear
SKU: . Category: . Tag: .

The AA100DM power amplifier is the latest addition
to the PureAA line. The amplifier stage used is
derived from the one of the Puccini Anniversary, but
in this case the output power has been increased to
100W. AA100DM is a very versatile amplifier,
intended for different uses thanks to its high level of
power, control and musicality.

As in the Puccini Anniversary, the power stage is
without global feedback and therefore less sensitive

Fully balanced and no feedback power amplifier.

Dual-mono circuitry with discrete components. Resistors to military standards, polypropylene capacitors.

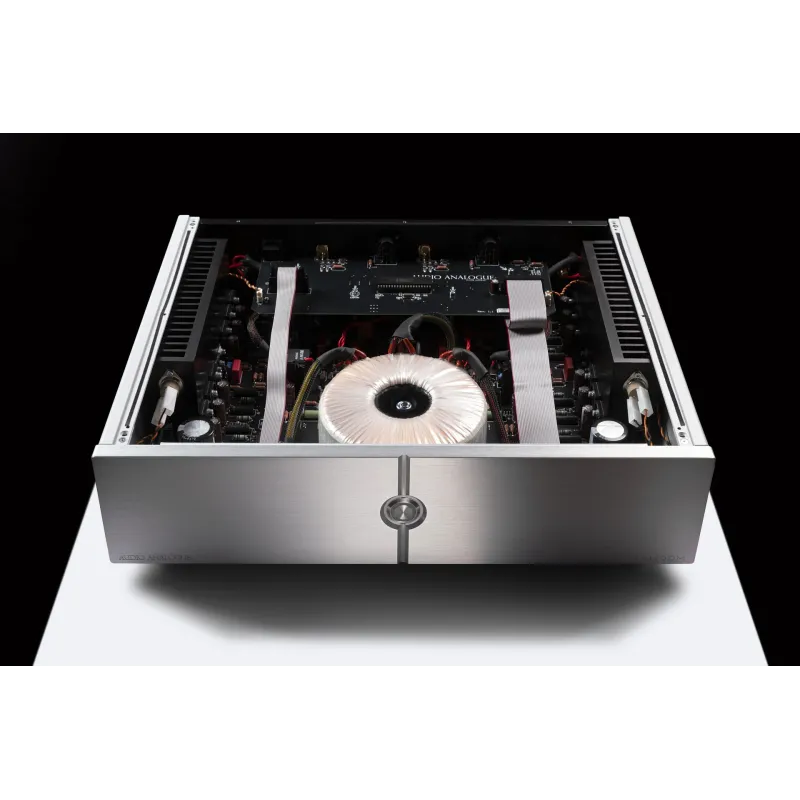

760VA transformer, six pairs of On-Semiconductor power transistors (three per channel).

Internal wiring with pure solid copper 7N OCC conductors, gold plated output connectors.

Configurable bridge mono with dedicated connection kit.

Available in natural aluminium or satin black finishes.

Product Description

Audio Analogue AA100DM

Number of channels 2
RCA inputs 1 pair
XLR inputs 1 pair
Input impedance 47 kΩ
Gain 26dB
Power on 8Ω load One channel operating -100W @ 1% THD (400W in Mono)
Power on 4Ω load One channel operating -200W @ 1% THD (700W in Mono)
Power on 2Ω load One channel operating -320W @ 1% THD

Sensibility 100W, on 8Ω – 1.4 VRMS
Frequency response Attenuation 0dB, Bandwidth -3dB – 95 KHz
Output resistance Nominal power on 8Ω at 1kHz -0.25 Ω
Input noise A weighted- ≈3 μV
SNR Nominal power on 8Ω, A weighted ->110 dB
Standby power consumption 230VAC -0.5W
Dimensions HxWxD – 120x445x390mm
Weight 15.5kg
