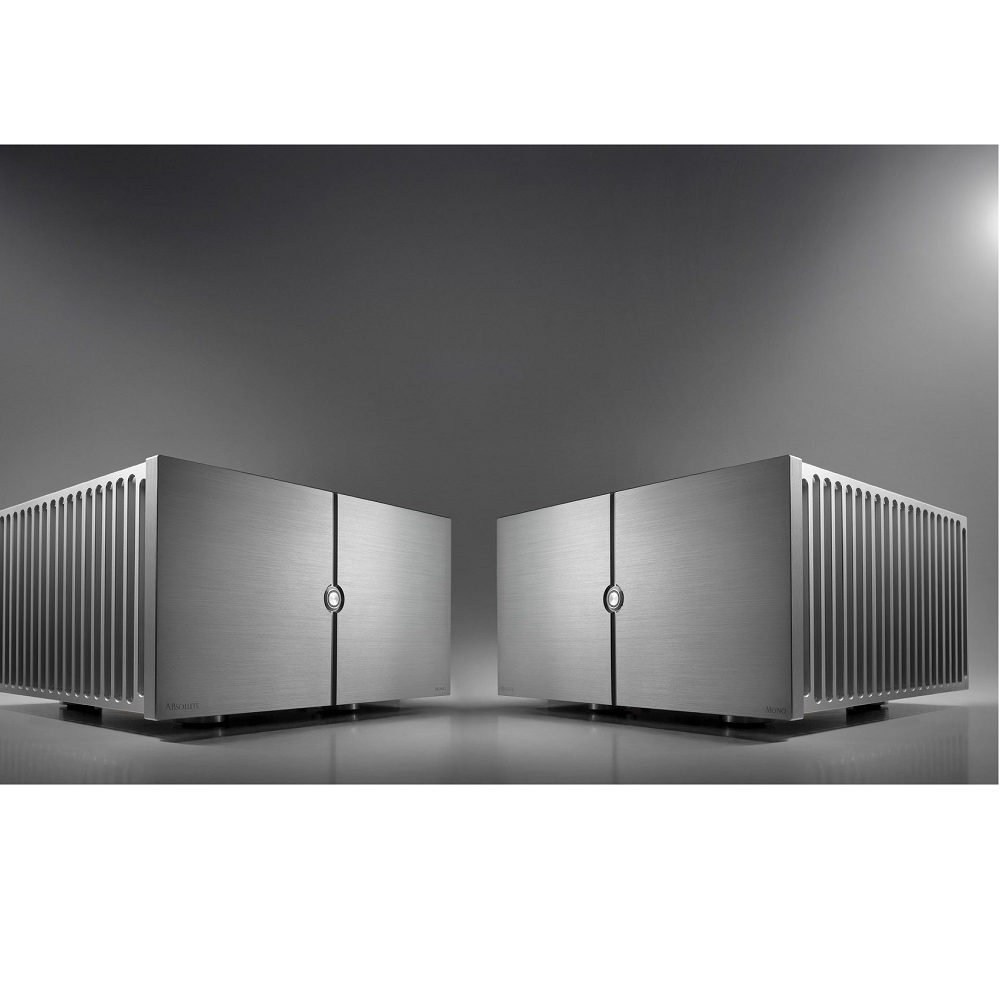

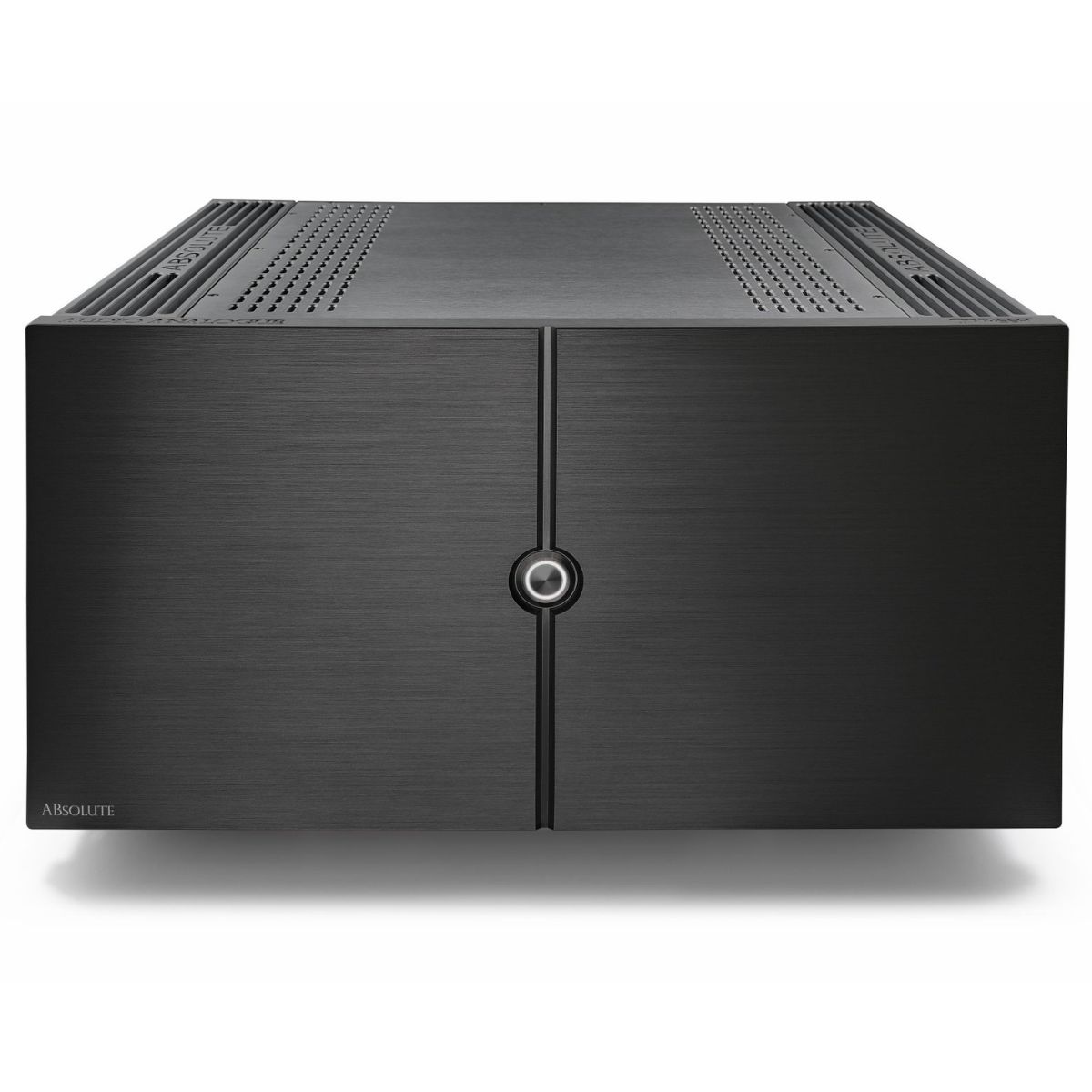

Audio Analogue ABsolute PA MONO

Class AB
Monophonic Power Amplifier
There are amplifiers that impress with watts, others that seek elegance as
their strength. And then there’s ABsolute PA Mono, which transforms energy
into living, palpable, and engaging music. 500W in class AB aren’t here to
impress on paper, but to unleash every nuance of the performance, every
breath, every emotion of the recording.

From the first listening, ABsolute PA Mono imposes its presence with
naturalness: the control is total, the silence between the notes is deep, the
dynamics explode without ever losing elegance. The low frequencies are
solid and authoritative, the medium rich and material, the high range is open
and bright, always refined. Everything flows with a fluidity that makes you
forget about electronics, leaving room only for music.

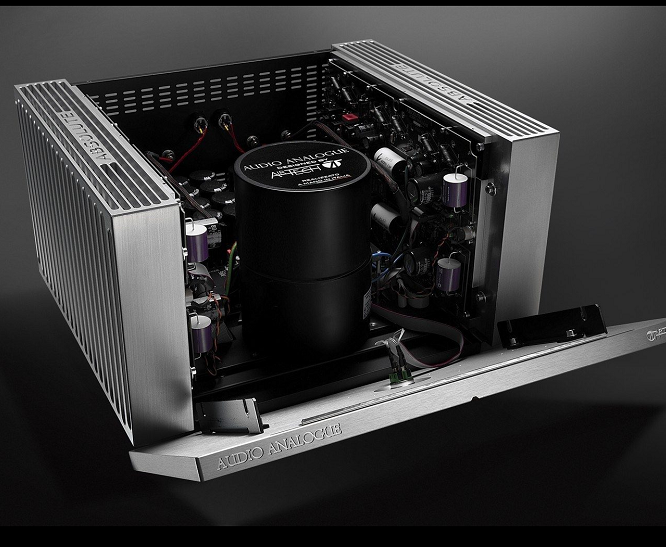

Its monophonic core, generous power supply, and obsessive attention to
every constructive detail create a broad, stable, three-dimensional sound
scene, capable of filling the space and engaging the listener at the center of
the musical event. There is no effort, no compression: only authority, control,
and freedom of expression.

ABsolute PA Mono is designed for those who are not content to hear, but
want to listen. For those seeking an amplification capable of moving,
surprising and making every listening session an intense and definitive
experience with any type of loudspeaker or musical genre.

Audio Analogue ABsolute PA Mono: power that gives voice to emotions.



Circuit without global feedback.

All stages are fully balanced.

ABsolute PA Mono is polarized in class AB up to 500W on 8 Ohm.

The bridge output stage accommodates twelve pairs of transistors, each 200W.

The amplification stage is a further improvement of the Segesta structure, which has already been used in the Anniversary series. The structure is deliberately asymmetrical and operates in current with no global feedback.

Oversized military resistors to minimize thermal distortion.

Audiograde capacitors.

Balanced stereo input.

Microcontroller management.

Product Description

Audio Analogue Absolute PA MONO

Channels
2
XLR inputs
1
Output power at 8Ω
500W in pure class AB
Output power at 4Ω
800W in class AB
Output power at 2Ω
1400W in class AB
Input impedance
44 kΩ
Noise level
Noise referred to input A Weighted
4.1 µVrms
Damping factor
Nominal output power at 8Ω/1kHz  -45
Signal/noise ratio (SNR) referred to 500 W
118.0 dB
Distorsion
Distortion from 1 W to 500 W @ 8Ω < 0.1%
Distortion from 20 Hz to 20 kHz < 0.1%
Output noise   20 Hz-80 kHz
170 µVrms
Output noise 20 Hz-22 kHz
135 µVrms
Output noise A Weighted
80 µVrms
Gain (balanced input to output) 19.5 V/V
25.80 dB
Rise time
1.75 us
Fall time
1.75 us
Stand-by power consumption 230 VAC
<0.5 W
Dimensions
HxWxD
270x483x445mm
Weight
50kg

Informații suplimentare

Producator

Audio Analogue

Prod

Amplificator de Putere
