Telefon: 0724.065.445

IMPORTATOR EXCLUSIV Kuzma Platis 54
Kuzma Platis 65Kuzma Platis detailKuzma Platis 65

Kuzma Platis 54&65

16983 lei–19890 lei/ bucata

Sau 2122.875 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
Clear
SKU: . Categories: , . Tag: .

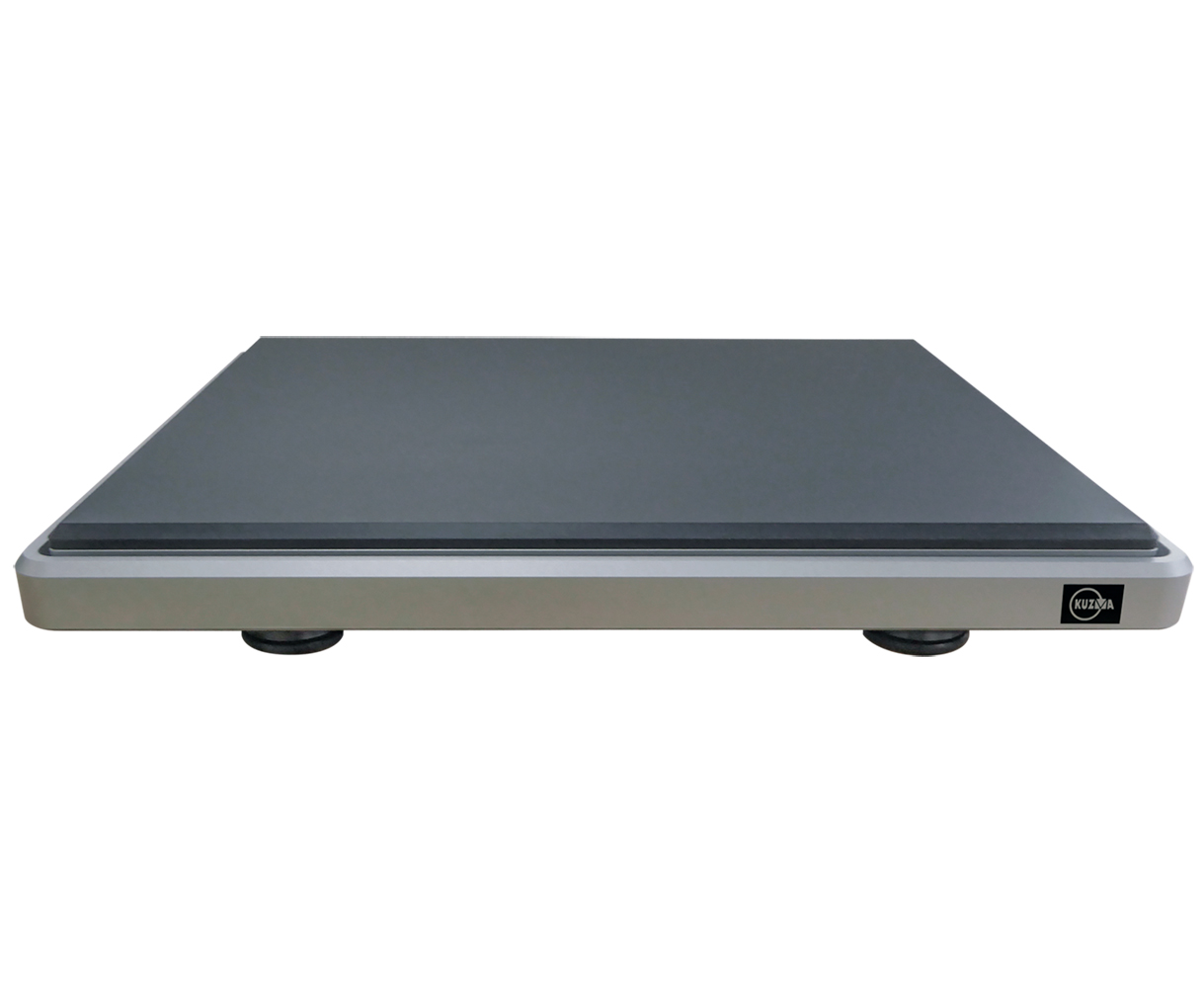

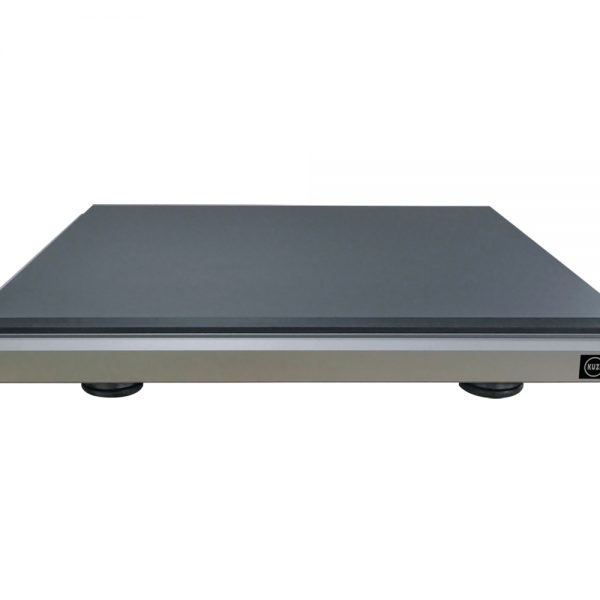

PLATIS 54 and PLATIS 65 are passive isolation platforms to minimase any vibrations reaching any audio components. Base frame is made from solid aluminium supported by adjustable feet. Top supporting plate is hard laminated plate reinforced with solid aluminium plate.
You can also just purchase top plate( hard laminated plate only)
Top plate 54: Damping plate 10 mm size 480 x 380 mm
Top plate 65: Damping plate 10 mm size 580 x 480 mm

Product Description

Kuzma Platis 54&65

    Technical data:

  • PLATIS 54
  • SIZE 500 x 400 x 60 mm
  • MASS 13 kg
  • LOADING Max 90 kg
  • PLATIS 65
  • SIZE 600 x 500 x 60 mm
  • MASS 19 kg
  • LOADING Max 120 kg

PLATIS 54 and PLATIS 65 are passive isolation platforms to minimase any vibrations reaching any audio components. Base frame is made from solid aluminium supported by adjustable feet. Top supporting plate is hard laminated plate reinforced with solid aluminium plate. You can also just purchase top plate( hard laminated plate only)
Top plate 54: Damping plate 10 mm size 480 x 380 mm
Top plate 65: Damping plate 10 mm size 580 x 480 mm

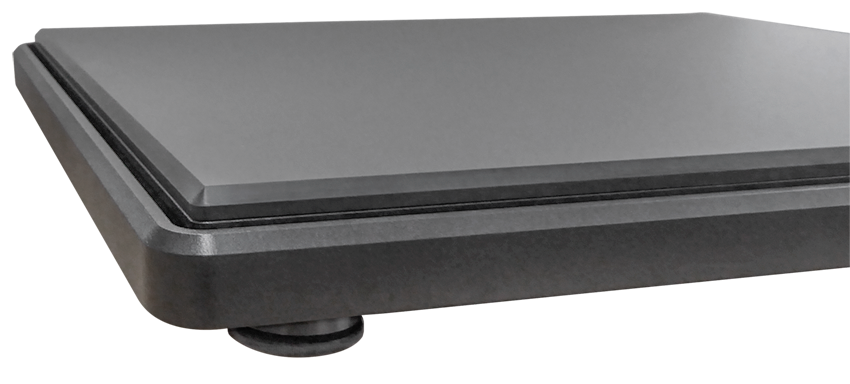

Upper plate and lower frame are separated by multi layer silicone & aluminium dampers which filter vibration in audible range. See DEWESOFT graph phpoto measured with DEWESOFT system:

DEWESOFT X DSA vibration system- modal hammer test

YELLOW GRAPH- vibration on audio component

RED GRAPH- vibration on audio component isolated by PLATIS 54

Informații suplimentare

Producator

Kuzma
Prod

Placi antivibratie
