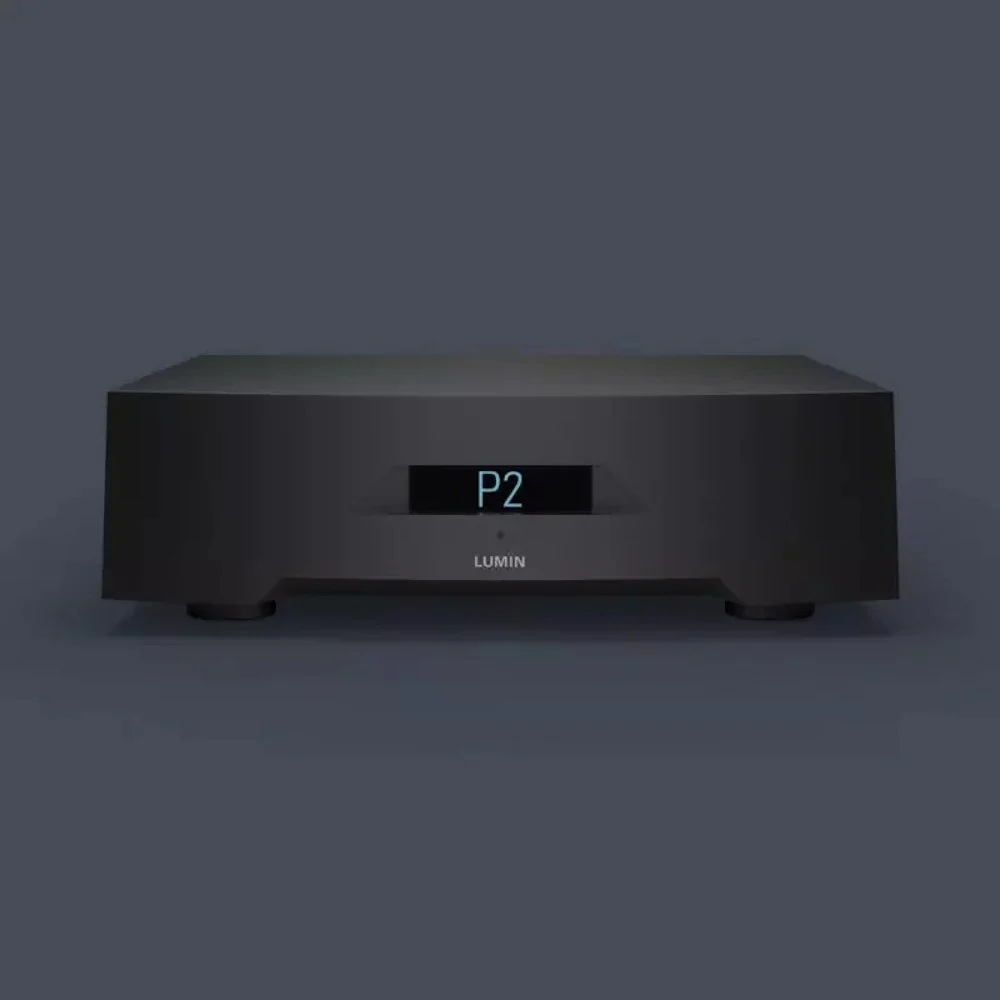

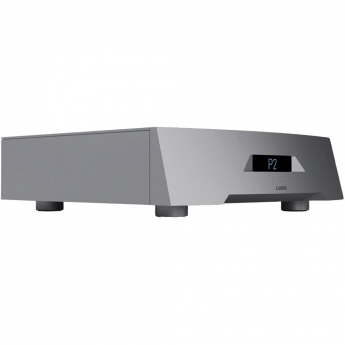

Lumin P2

Product Description

Lumin P2

Network playback: Up to DSD512
Up to 384 kHz, 16–32-bit, Stereo  MQA Full Decoding

Upsampling rates & bit depths:  DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files
Digital Input: USB: USB Audio Class 2 Compatible
WINDOWS 10 (Release 1703 or above) / Mac OSX or above
DoP 128 support
PCM 44.1–384 kHz, 16 / 32-bit, Stereo

AES/OPTICAL/SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)

HDMI x3:
PCM 2.0 Audio support
4K Video Passthrough
Digital Output:
USB:
Native DSD512 support
PCM 44.1–384 kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)

HDMI x1:(HDMI Passthrough and ARC support)
PCM 2.0 Audio support
4K Video Passthrough
ARC (Audio Return Channel) support
ARC CEC volume and mute control
Analogue Input:
RCA Unbalanced x1
XLR Balanced x1

Analog Output:
Dual ESS SABRE32 ES9038Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution

Optical Network:
Industry-standard Gigabit SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

Power Supply:
Internal dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
Physical:
Finish:
Black anodised aluminium
Raw aluminium
Lumin (solid aluminium chassis):  350mm (W), 380mm (D), 107mm (H), 12kg
