IMPORTATOR EXCLUSIV 740p
Moon 740PMoon 740PMoon 740P

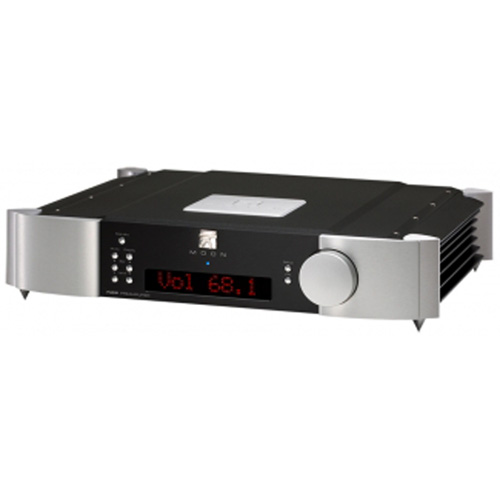

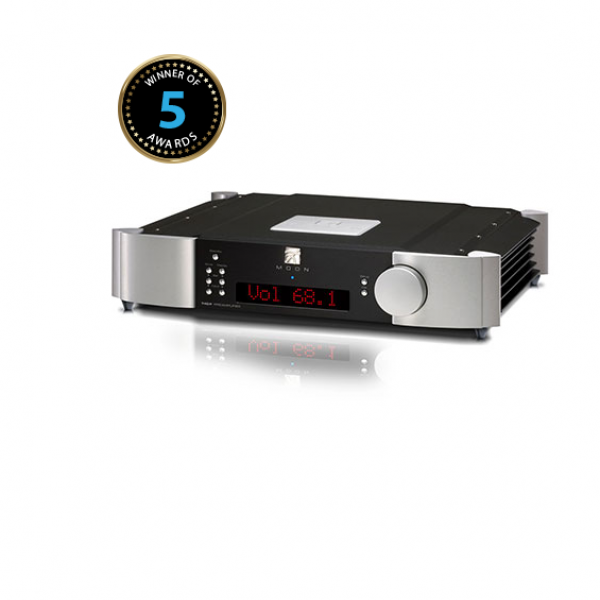

Moon 740P

38250 lei / bucata

Sau 4781.25 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
Clear
SKU: 8819. Category: . Tag: .

Descriere Produs
The MOON 740P is a dual-mono fully balanced differential design, following in the footsteps of the reference 850P preamplifer. This “next generation” Evolution series preamplifier uses various recently in-house developed technologies that help create a level of performance that can be best described as astounding.
Intended for those seeking high-performance in an elegant, stylish yet uncomplicated package, the 740Pleaves your music uncolored and free of any grain or noise; The purity of the signal remains uncompromised, allowing the music to be heardas was intended from day it was recorded. New technologies include the M-eVOL2 volume control, with a phenomenal 530 steps, allowing for an extremely precise level adjustment.

Untitled

Product Description

  • Type Solid State
  • Configuration Dual-Mono / Fully Balanced
  • Power Supply Transformers 2 x 10VA (audio); 1 x 10VA (controller)
  • Power Supply Capacitance 44,000µF
  • Circuit Topology Open Loop

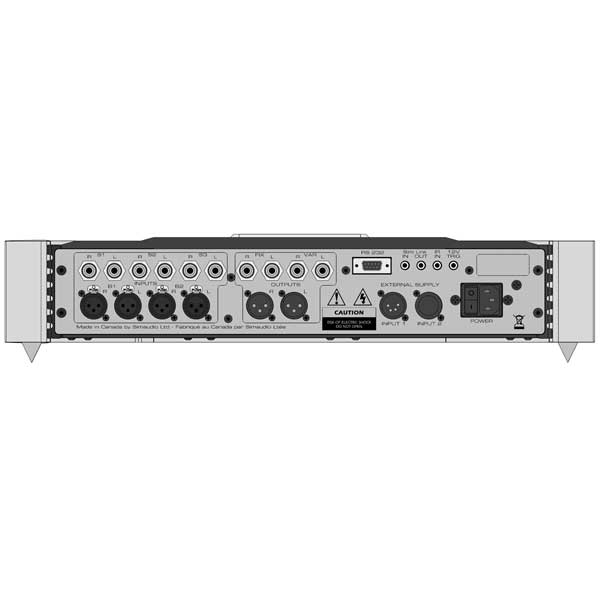

  • Balanced Inputs (XLR) 2 pairs
  • Single-ended inputs (RCA) 3 pairs
  • Input Impedance 22,000Ω
  • Input Sensitivity 200mV – 4.0V RMS
  • Balanced Outputs (XLR) 1 Pair
  • Single-Ended Outputs (RCA) 2 Pairs (variable & fixed)
  • Output Impedance (RCA / XLR) 50Ω / 50Ω
  • Gain Control M-eVOL2 (R-2R)
  • Gain 9dB
  • Signal-to-noise Ratio (20Hz – 20kHz) 120dB
  • Maximum Output Voltage – XLR 12 Volts
  • Maximum Output Voltage – RCA 6 Volts
  • Frequency Response 5Hz – 100kHz (+0 / -0.1dB)
  • Crosstalk @ 1kHz -116dB
  • IMD unmeasurable
  • THD (20Hz – 20kHz) 0.001%
  • 12 Volt Trigger Output Operation Direct Logic (0V = off, 12V=on) using a 3.5mm mono jack with an output impedance of 1000Ω and current requirement of 12mA
  • SimLink™ Port 1 input + 1 output each on 1/8″ mini-jack
  • RS-232 Port 9-pin female DB connector
  • IR input 1/8″ mini-jack
  • Remote Control FRM-3 All-Aluminum Back-lit Full Function
  • Display Type 8 character dot matrix LED
  • Power Consumption @ idle 20 Watts
  • AC Power Requirements 120V / 60Hz 220-240V / 50Hz
  • Fuse Replacement 120V / 220-240V 200mA short slow blow / 100mA short slow blow
  • Shipping Weight 35 lbs / 16 Kgs
  • Dimensions (w x h x d) 18.75 x 4.1 x 16.81 in. (47.6 x 10.4 x 42.7 cm.)

Downloads & Manuals

Owner’s Manual Download
Compare MOON Preamplifiers Download
