IMPORTATOR EXCLUSIV Moon 870A Black
Moon 870A BlackMoon 870A

Moon 870A

92250 lei / bucata

Sau 11531.25 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
Clear
SKU: 5766. Category: . Tag: .

Descriere Produs

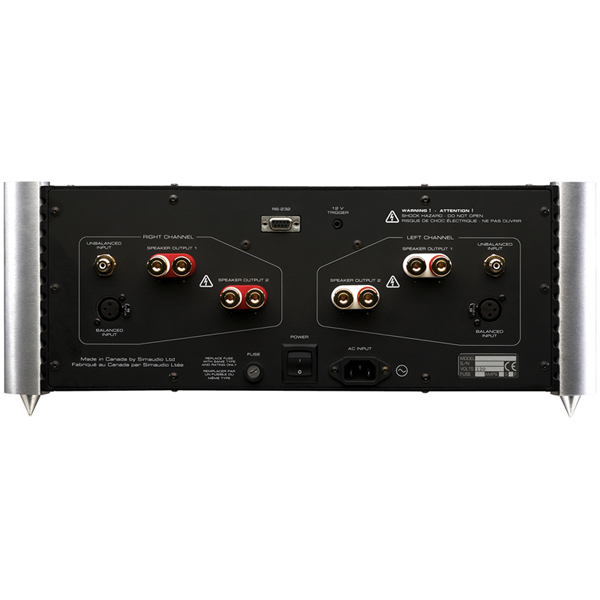

The MOON 870A Power Amplifier is a balanced differential dual-mono design that effortlessly outputs 300 watts into 8Ω and 600 watts into 4Ω. Transparency and soundstage are exceptional, despite this amplifier’s high power rating. Ultimately, the 870A will mate seamlessly with any loudspeaker allowing it to reach its full sonic potential, regardless of its load.

Product Description

  • Type: Solid State
  • Configuration: Dual-Mono / Balanced
  • Power Supply Transformers: 2 x 1.3kVA
  • Power Supply Capacitance: 240,000µF
  • Class Of Operation: A/AB
  • Balanced Inputs XLR – 1 pair
  • Single-ended Inputs: RCA – 1 pair
  • Input Device Type: J-FETs
  • Input Impedance: 47.5 KΩ
  • Input Sensitivity: 1,400mV RMS
  • Output Device Type: Bipolars – 16 per channel
  • Output Binding Posts: WBT – 2 pair per channel
  • Output Power @ 8 Ω: 300 Watts
  • Output Power @ 4 Ω: 600 Watts
  • Output Power @ 2 Ω: 1200 Watts
  • Output Power – Bridged Mono: 1200 Watts
  • Frequency Response 10Hz – 200kHz (+0/-3dB)
  • Output Impedance < 0.01
  • Damping Factor (static) > 800
  • Gain 31dB
  • Signal-to-noise Ratio 106dB @ full power
  • Maximum Output Voltage 58 Volts
  • Slew Rate 42 V/µs
  • Maximum Current – Peak 72 amperes
  • Maximum Current – Continuous 30 amperes
  • Crosstalk @ 1kHz -105dB
  • IMD Unmeasureable
  • THD (20Hz – 20kHz @ 1 watt) 0.015 %
  • THD (20Hz – 20kHz @ 200 watts) 0.04 %
  • 12 Volt Trigger Operation – Direct Logic (0V = off, 12V=on) using a 1/8″ mini-jack with an input impedance of 1K Ω and current requirement of 12mA
  • RS-232 Port 9-pin female DB connector
  • Power Consumption @ idle 75 watts
  • AC Power Requirements 120V / 60Hz 240V / 50Hz
  • Fuse Replacement – 120V 10A long fast blow
  • Fuse Replacement – 230V 5A long fast blow
  • Shipping weight 98 lbs / 44 kgs
  • Dimensions (w x h x d) 18.75 x 7.5 x 17.5 in.
