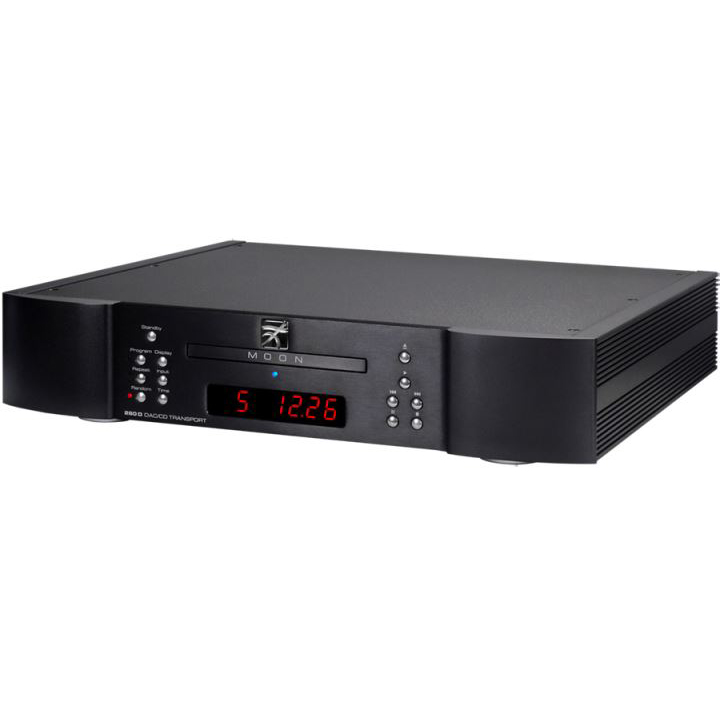

Moon Neo 260D

• Configuration Single-ended
• Front Panel Controls Standby · Program · Display · Repeat · Input ·
  Random · Time · Open/Close · Play · Pause ·
  Scan/Skip Forward · Scan/Skip Backward · Stop
• Front Panel Display Track number · Time – elapsed or remaining
  (track / disc) · Sampling Frequency Rate
• Front Panel LED Indicators Program · Repeat – current track ·
  Repeat – entire disc · Random

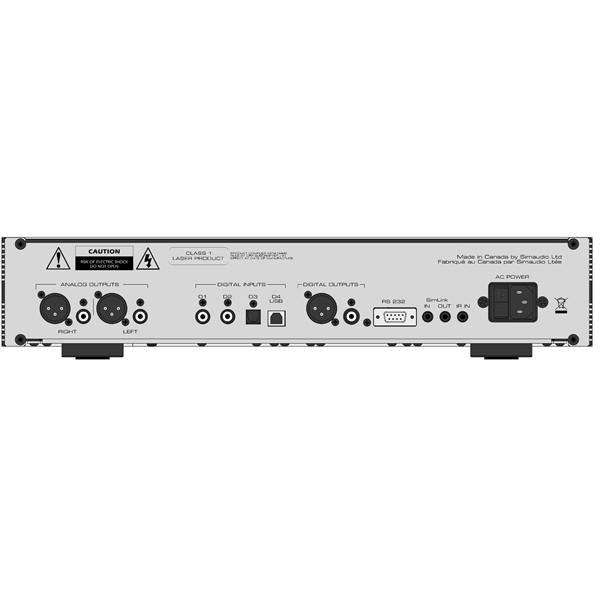

• Digital Outputs (2) AES/EBU (XLR) S/PDIF (RCA)
• SimLink™ Port 1 input + 1 output each on 1/8″ mini-jack
• RS-232 Port 9-pin female DB connector
• IR input 1/8″ mini-jack
• Remote Control CRM-2 Full Function
• Power Consumption in Standby 0.5 watts
• AC Power Requirements 120V / 60Hz 220-240V / 50Hz
• Fuse Replacement – F1 All Voltages 500mA short slow blow
• Fuse Replacement – F2 120V / 220-240V 200mA short slow blow / 100mA short slow blow
• Shipping weight 16 lbs / 7.5 Kgs
• Dimensions (w x h x d) 16.9 x 3.4 x 13.1 in. (42.9 x 8.6 x 33.3 cm.)

Optional Digital-to-Analog Converter:

• DAC / Digital Filter Asynchronous 32-bit
• Frequency Response (full range) 2Hz – 100kHz +0/-3dB (external source)
• THD @ 1kHz, 0dBFS (A-weighted) < 0.001 %
• IMD < 0.001 %
• Dynamic Range > 120dB
• Signal-to-noise ratio > 120dB @ full output
• Channel Separation > 116dB
• Low Level Linearity < ±0.25dB at -90dBFS
• Intrinsic Jitter < 1 picosecond RMS
• Analog Outputs – Balanced 1 pair XLR
• Analog Outputs – Single-Ended 1 pair RCA
• Analog Output Impedance (XLR/RCA) 75Ω
• Max. Analog Output @ 0dBFS 2.0 Volts (XLR/RCA)
• Bit-depth range 16 – 24 bits
• Sampling Frequency Rate range 44.1 – 192kHz (up to 96kHz for TosLink)
• Digital Inputs (4) USB x 1 · TosLink x 1 · S/PDIF (RCA) x 2
