IMPORTATOR EXCLUSIV MSB Select Headphone Amplifier
MSB Select Headphone Amplifier(2)MSB Select Headphone Amplifier(3)MSB Select Headphone Amplifier(4)MSB Select Headphone Amplifier(5)The-12V-Adaptor-ISO

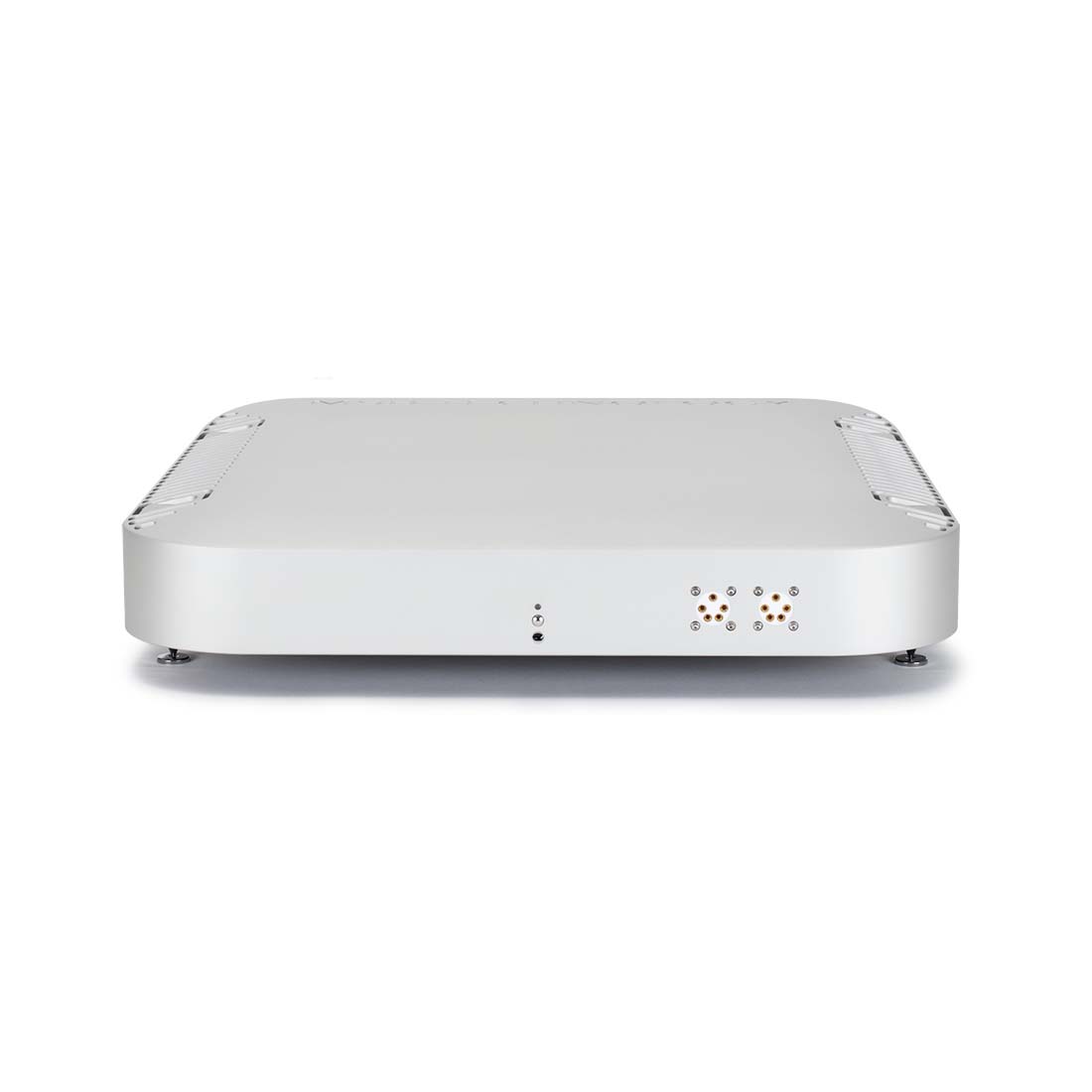

MSB Select Headphone Amplifier

217500 lei/ bucata

Sau 27187.5 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
Categories: , . Tag: .

The world’s highest level of headphone audio playback.
Electrostatic headphones
With the great variety of headphone choices, it is only possible to achieve the best performance with a single headset in mind. You can not use the universal headphone amp concept with the Select level of performance. That is why we have built a dedicated Stax* headphone amp to be paired the the Select DAC.
Integrated system
The Select Headphone Amplifier has been designed to take advantage of the powerful DAC outputs. This allows it to achieve a level of headphone playback never heard.
Analog bypass
If you are sharing the headphones with a two channel system, use an internal bypass in the amp. Simply turn off the unit for the signal to be sent to your other system.
Equalization module
A discrete passive equalization module slot is included with the amp. This allows for slight analog adjustments of the amplifier to accommodate new headphone designs in the future. This can also be used to tune the system for your preferences.

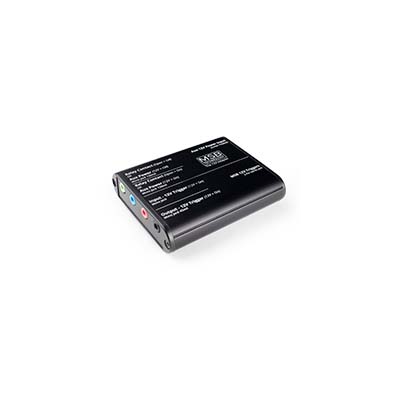

The 12V Trigger Adapter
The 12V trigger adapter provides a multitude of ways for connecting your MSB product with other 12V trigger systems.

Manufactured in California

Product Description

MSB Select Headphone Amplifier

    Technical Specifications

The Select Headphone Amplifier can ONLY be used with MSB DACs.

  • Dynamic Range >140 dB
  • Frequency Response 5Hz-20Khz, ±0.8dB
  • XLR Input 75Ω Balanced
    4Vrms Maximum
  • Common Mode Rejection Ratio > 120dB CMRR @ 60Hz
    > 90dB CMRR @ 1kHz
    > 70dB CMRR @ 20kHz
  • Crosstalk
  • XLR Output Direct connection to input when enabled or unit powered off.
    When listening to headphones, output is muted with 75Ω output impedance

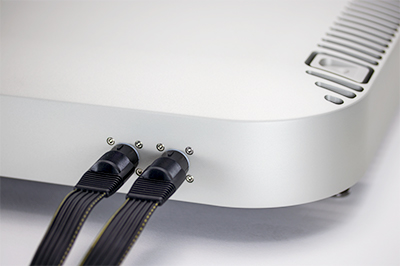

  • Headphone Output 2x Stax style outputs
  • Bias Voltage 580Vdc, 5 MΩ
  • Controls IR Remote (Configurable)
    Power Button (Configurable)
    2x MSB 12V Trigger
  • Power Consumption 80W
    Less than 2W standby
    1. Topology
  • Input/Gain Stage – Class-A
    – Quad balanced
    – Impedance matched
    – Transformer coupled
    – Fully discrete
  • Output Stage – High Voltage Electrostatic Class-A
    – Balanced
    1. Chassis Dimensions
  • Width: 17.5 in (444 mm)
  • Depth: 17.5 in (444 mm)
  • Height: 3.125 in (79 mm)
  • Weight: 36 lbs (16 kg)
  • Product Feet: M6X1 Thread
    1. Shipping Dimensions
  • Width: 25 in (635 mm)
  • Depth: 25 in (635 mm)
  • Height: 10 in (254 mm)
  • Weight: 61 lbs (28 kg)
    1. Included Accessories
  • User manual
    Ground cable
    IEC power cord
    4X Rubber feet
    4X Plastic foot inserts
