IMPORTATOR EXCLUSIV Neotech NES-3004 II

Neotech NES-3004 II

430 lei 280 lei m/fara terminatii

Sau 35 lei / luna in 8 rate

Garantie 24 luni

* Preţul conţine TVA şi taxa timbru verde
Categories: , , . Tag: .

NES-3004 II is consisting of a number of individual conductors. NES-3004 II has 8 cores UP-OCC copper conductor (11AWG, 4.0sqmm) with CL3 flame retardant jacket insulation,

UP-OCC Tech. Multi-Size Copper & UP-OCC Silver Plated Copper Conductor
8 Core Conductor Group
CL3 Rated PVC Insulation
Anti-Electrostatic PVC Outer Jacket

Product Description

Neotech NES-3004 II

  • UP-OCC Tech. Multi-Size Copper & UP-OCC Silver Plated Copper Conductor
  • 8 Core Conductor Group
  • CL3 Rated PVC Insulation
  • Anti-Electrostatic PVC Outer Jacket

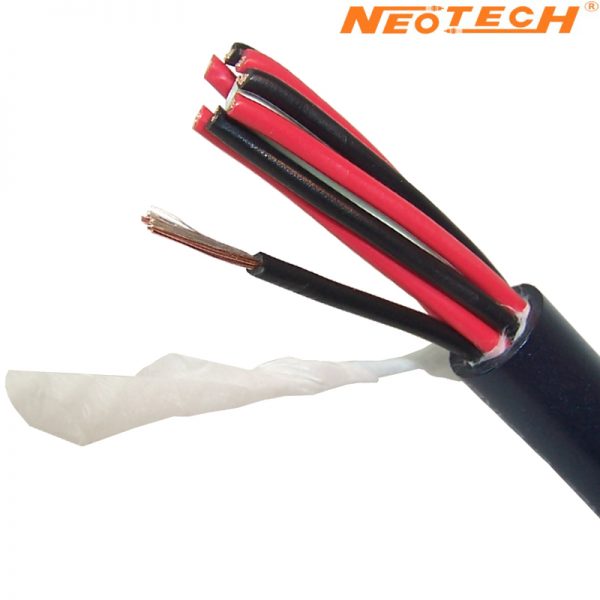

  • The Neotech NES-3004 MKII consists of an outer blue PVC insulation, marked with the cable type and direction arrows, the overall diameter is 13mm. Central to the cable is a white PVC ventral cord around which are 8 conductors, 4 red and 4 black (PVC insulation), alternate colours as you go round. An additional 2 conductors than the NES-3005.
  • Each individual conductor is made from UP-OCC copper, each wire consists of number individual conductors that are a multi size mix – the Hybrid design means that the conuctors are a mix of pure UPOCC copper and silver plated UPOCC capper strands.
  • The dimensions of one conductor (1 red or black conductor) is 3.5mm external diameter, and 1.3mm (16awg) wire diameter. The overall size of the conductors (all red or all black conductors) is 11 AWG (2.3mm diameter). Due to the high AWG figure of each conductor, the cable could happily be used for bi-wiring.

Informații suplimentare

Producator

Neotech
Prod

Cabluri Boxe, Cabluri Boxe la metru
