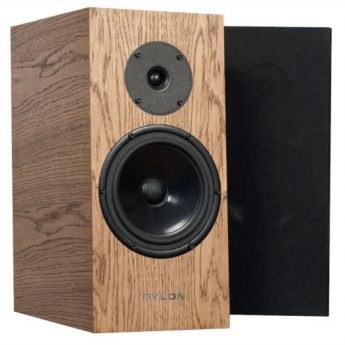

Pylon Diamond Monitor 18

Diamond Monitor 18 – 2-way design based on the 19mm Scan Speak textile dome, characterized by spatial and retail sound. The bottom of the band is reproduced by the 18cm Norwegian Seas driver, that is offering colourful sounding well known from the other Diamond designs. This loudspeaker was modified by adding an additional magnetic ring that optimized Thiele-Small parameters for the needs of the application inserted in the mount-enclosures.

Diamond Monitor 18 offers dynamic and spatial sound. Thanks to the optimization of the magnetic system, the speakers have a strong and well-articulated bass. The midrange tones of the set are a representation of precision and resolution, vocals and acoustic instruments are stable in a space filled with a great deal of information.

The steering in the monitors is mounted in the direct-mount technology, using only polypropylene capacitors. The placement of the coils have been optimized for minimizing interactions.

The loudspeaker enclosures are made in the same technology as in case of their larger brothers, Diamond 28 and 25. The solid is based on MDF boards, bituminous mats and sheep wool were being used for the dampening. The whole structure was stiffen with additional reinforcement. Through a slight tilt of the structure, the intended visual effect was combined with the optimization of the phase dependencies between the speakers.

The columns are dedicated to the rooms of 12 – 25 m2.

The sets are provided with the branded stands that create an attractive proposition for people who would like to use the full potential of the columns in their spatial capabilities.
